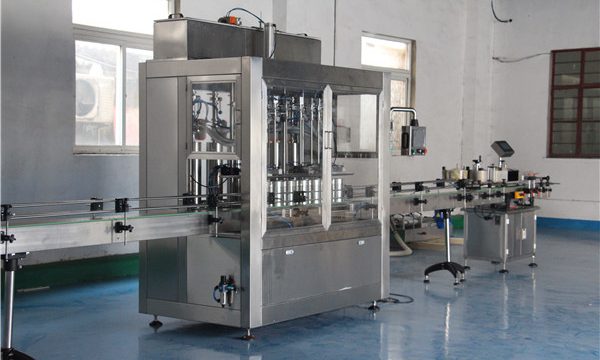

Our Jam Filling Machine which is stainless steel thoroughly is produced congruent with alimentary products law. It works with plc system. Main tank produce intended amount. It can fill 100 gr up to 1800 gr. Filling range can be adjusted accordingly intended basis weight.
The jam filling line comes with everything you need to get your jam bottling line up and running. It is designed to bottle up to 10-30 bottles per minute.
Automatic volumetric mechanical piston-action dosing and filling machines ideal for jam and mixed products with whole pieces, liquid and pastry in glass, metallic or plastic containers.
NPACK is a leading manufacturer, supplier & exporter of high-quality jam filling machine.
To meet the changing needs of the fruit jam industry, jam filling machines manufactured by us are customized as per client’s requirements, in compliance with various industrial standards.
We offer a wide range of filling machine using high-quality standard material which is tested at various levels.
The jam filling machine is used for filling highly viscous liquid and creams such as fruit jam and creams in bottles.
The jam filling machine consists of a square block which consists of a pin valve for accuracy purpose.
It also consists of a hopper in which the fruit jam to be filled. The pin valve is operated through pneumatic control.
The machine is available in 1, 2, 4 or more heads. The jam filling machine manufactured by us is known for its compact design and robust construction. These machines are highly appreciated among the customers due to their accurate results.
100ml – 1000g glass bottle Jam filling machine Quick Detail: 1. Product: ketchup,sauce,Jam 2. Capacity: 1000-3000bph 3. Suitable bottle: 100ml-1000g 4. Authentication: ISO,CE,SGS This bottle Jam filling machine is widely used to filling many kinds of sauce into glass bottle, tin can, such as the paste and sauce Specifications No. Items Performance 01 Machine dimension (L×W×H) 2500mm×950mm×2200mm 02 No. of filling head 4/6/8/10/12/16 03 Suitable bottle size (abnormal bottles can also be valid) Diameter Φ30mm~Φ100mm Height 50mm~250mm 04 Diameter of bottle mouth ≥φ18mm 05 Suitable filling range 100ml to1000ml 06 Production capacity 1200-3000 bottles/hour 07 Error range ±0.8% 08 Power…
Cheapest Pneumatic Semi-automatic Jam Filling Machine Main Features 1, It is suitable for cream, paste and liquid filling in bottles. 2, It is an ideal filling machine for economy invest and small capacity. 3, It is pneumatic. 4, The filling volume is control by the stroke, and set the volume by rotating handle wheel. 5, The whole filling process including : Material adding, Air Extraction ,Cylinder suction and then material out through nozzle. 6, The filling nozzle is anti drop, anti leakage and silk, automatic shut off filling nozzle. 7, Top Hopper and Liquid Transfer Valve. 8, Filling range 5-5000ml.…
1, 304 Stainless steel construction and the liquid contact parts are 316L stainless steel. 2, Pneumatic components and electrical products for famous brand products. 3, PLC and touch screen control, convenient parameter setting. 4, Servo motor Driven, one servo motor drive one piston, high speed and high accuracy. 5, Accurate filling volume, within ±0.2 for 1000ML. 6, No bottle ,no fill, automatic warning on errors. 7, The filling blocked nozzles are anti drops, silk, and auto cut viscous liquid. 8, Easy to maintain, no special tools are required. 9, Diving nozzles for bottom up filling of foaming products. 10, Bottle…
